| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | RJ |
| प्रमाणन: | CE/ROSE |
| मॉडल संख्या: | आरजे |

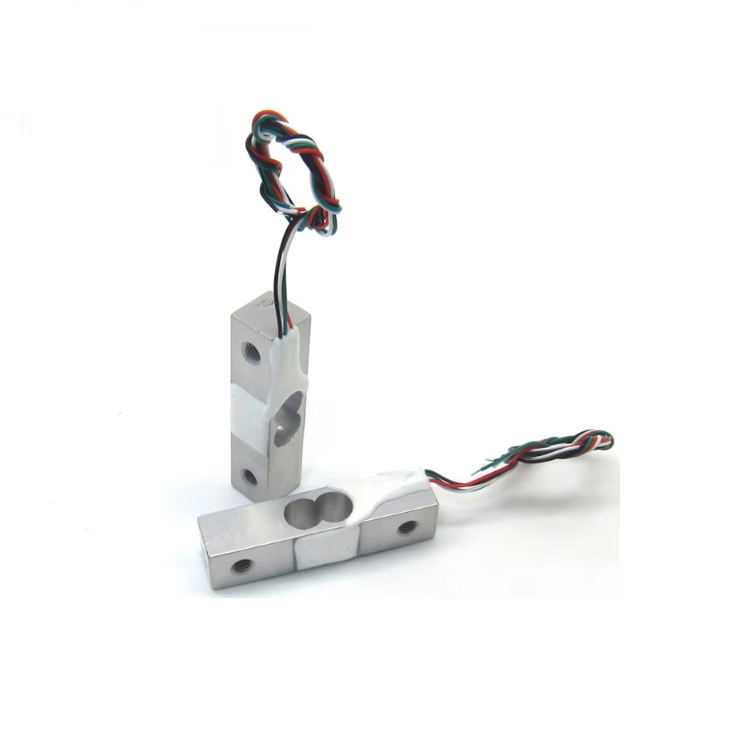

Parameters
| Capacity | 1kg-50kg |
| Rated Output | 1.0±0.2mV/V |
| Comprehensive error | 0.05 %F.S |
| Non-linearity | 0.05%F.S |
| Hysteresis | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Creep | 0.05 [(3 min)% F.S.] |
| Zero output | -0.15~+0.05 m V/V |
| Temp. effect on zero | 0.3 (%F.S/10℃) |
| Temp. effect on span | ≤0.15 (%F.S/10℃) |
| Input impedance | 1000±50 Ω |
| Output impedance | 1000±50 Ω |
| Insulation resistance | ≥2000 MΩ |
| Operating compensated range | -10~+40 |
| Recommended excitation voltage | 3-10 VDC |
| Safe overload | 120%F.S |
| Ultimate Overload | 150%F.S |
| Cable | Φ0.8 x 220mm |
| Connection | Excitation: Red+, Black- Signal: Green+, White- |
