| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | RUIJIA |
| प्रमाणन: | CE |
| मॉडल संख्या: | आरजे |
Product Descriptions:
Name:Compact 3-Axis Force Transducer Fx/Fy/Fz Measurement For Machining Centers/Medical Equipment Precision Testing
Material: Aluminum Alloy
Capacity:: Fx-Fy=FZ 50/100/200500/1000N
IP Class: IP 65
Advantages:
1.Multi-Axis Precision - Accurately measures Fx, Fy, and Fz loads with high accuracy and anti-side force capability.
2.Compact & Easy Integration - Low-profile design and simple installation for space-constrained applications.
3.Customizable Options - Flexible configurations with various cable lengths, dimensions, capacities, and accessories.
4.Versatile Applications - Ideal for robotic arms, machining centers (grinding/polishing), and medical equipment testing.
Applications:
Used for precision control of robotic arms, spherical grinding and polishing, engraving processing in machining centers, and precision testing of medical equipment.
Specifications:
| Specifications | Techniques | ||||||
| Capacity | Fx-Fy=FZ 50/100/200500/1000N | ||||||
| Sensitivity | ~1.5%mV/V | ||||||
| Zero balance | ±0.1mV/V | ||||||
| Non-linearity | ≤0.1%F.S. | ||||||
| Interference error | ≤0.5%F.S. | ||||||
| Coupling error | ≤0.5%F.S.. | ||||||
| Repeatability | ≤0.05%F.S. | ||||||
| Input impedance | 350±10Ω | ||||||
| Output impedance | 350±10Ω | ||||||
| Insulation Resistance | ≥ 5000MΩ/100VDC | ||||||
| Recommended excitation | 2-12V | ||||||
| Operating temperature range | -40-90°C | ||||||
| Safe load limit | 150%F.S. | ||||||
| Cable size | Ф4.8 × 4000mm | ||||||
| Material | Aluminum Alloy | ||||||
| IP Class | IP65 |

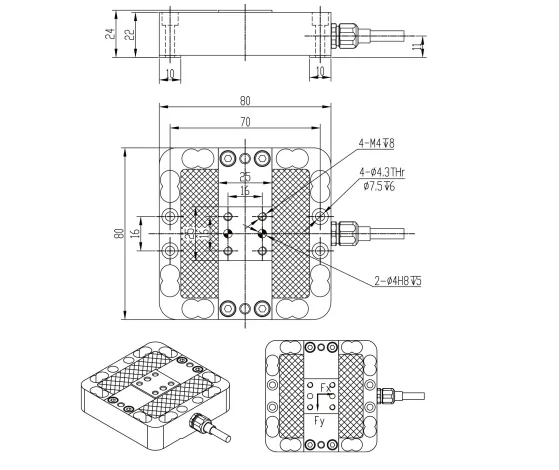

Dimensions(mm)
Load direction
Wiring code
